• Blizz TRL e90-297 MTB E-Bike

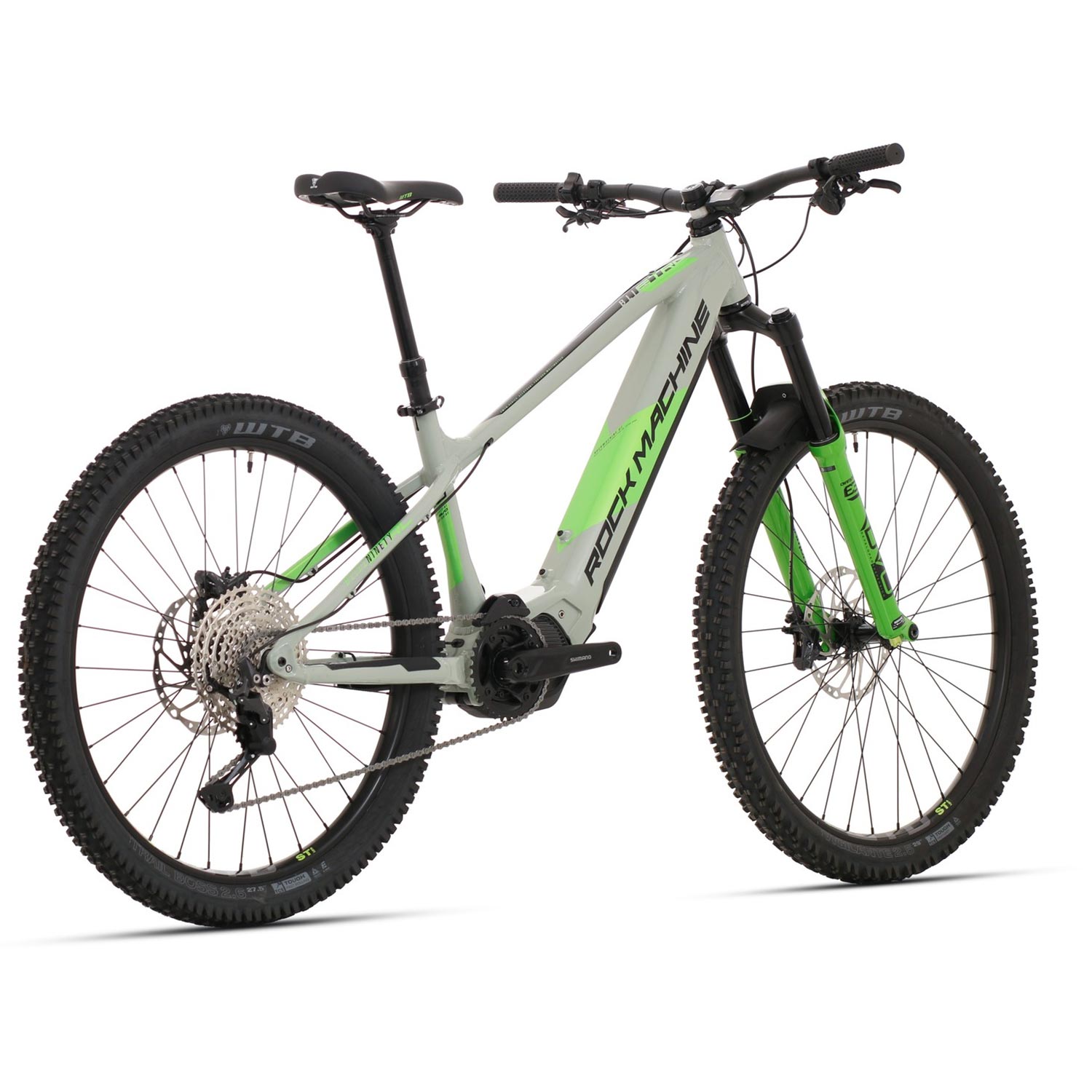

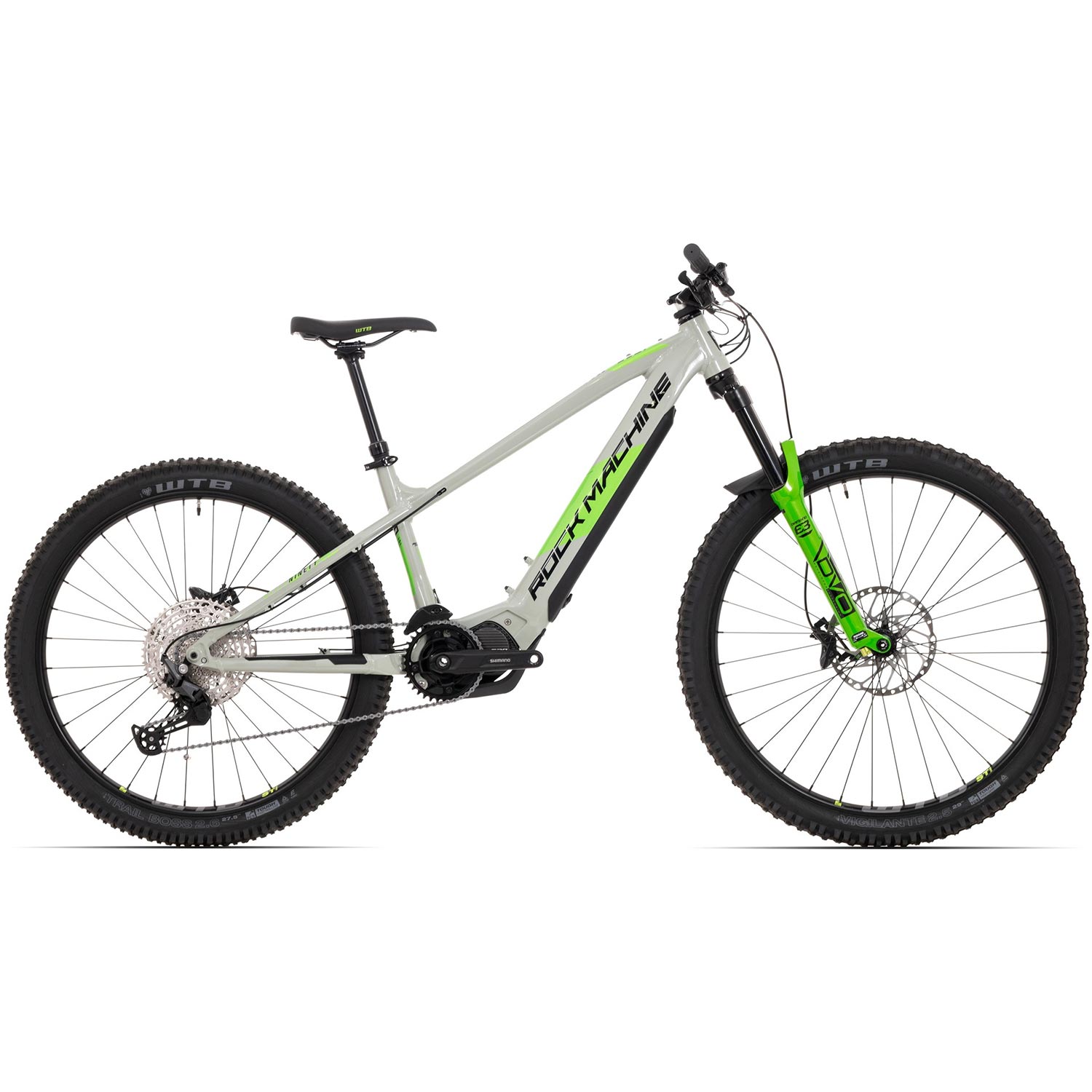

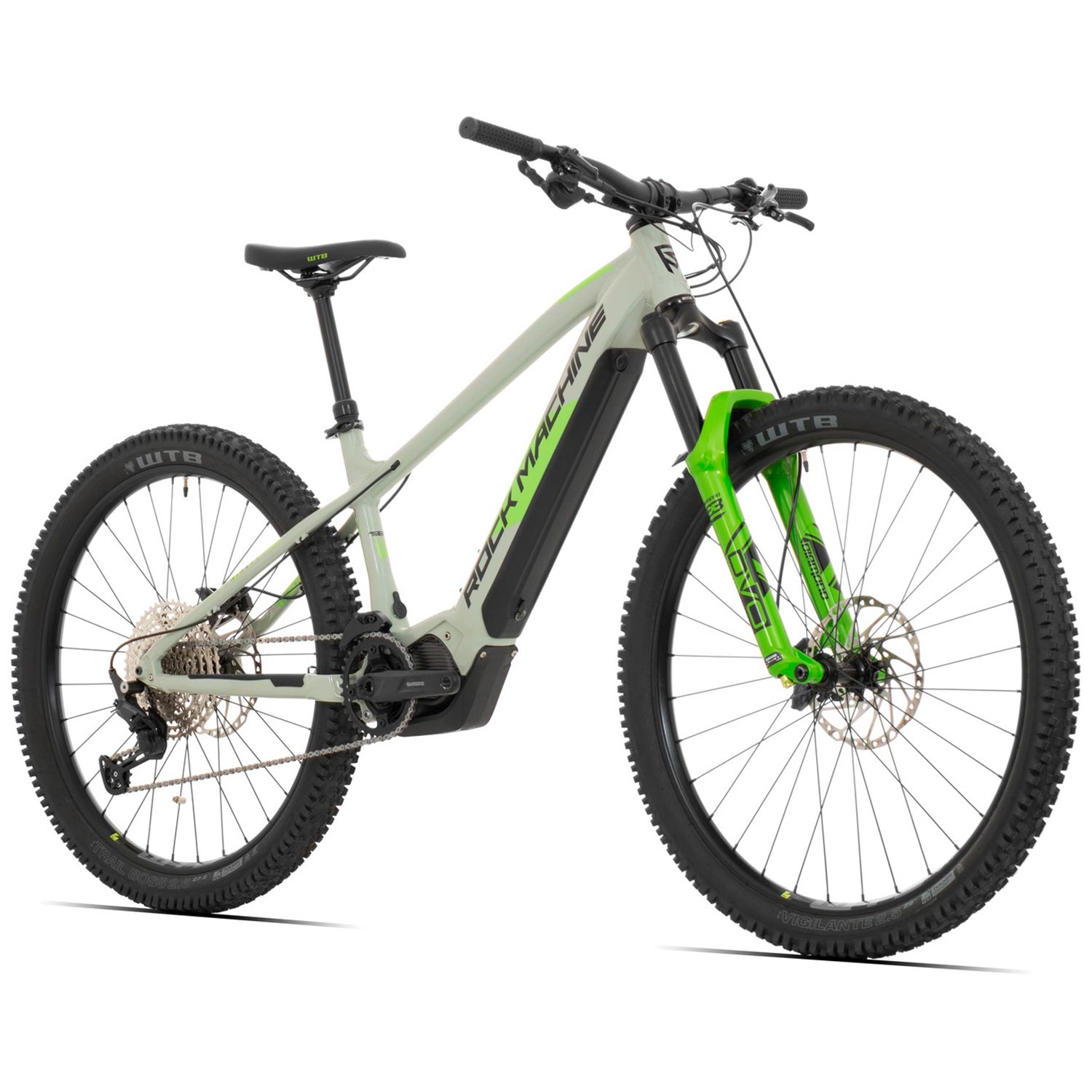

A hardtail E-bike with a powerful Shimano EP8 motor featuring 85 Nm and a range up to 120 km. The uncompromising trail frame geometry gives this Blizz generation even more fun factor and control. The 29"/27.5" mullet setup wheels with plus-size tires will beat the toughest trails. The US-made DVO Diamond E3 suspension with 140 mm travel; dropper post with 150/170 mm travel, depending on the frame size; and ONE1 accessories turn Blizz into the ultimate trail machine.

Features

• SHIMANO EP8 motor with 85 Nm and range up to 120 km
• E-TUBE PROJECT individual e-drive settings via Shimano E-Tube app
• Durable frame with specific Trail Ultimate Geometry to maximize bike control on trails

Base Info

• E-System: SHIMANO E-Bike system EP800, Boost 400%, Trail 180%, Eco 60%, Peak output 500W
• Distance: 120km
• Max Torque: 85Nm/400%
• Weight: 22.9kg

E-Bike Parts

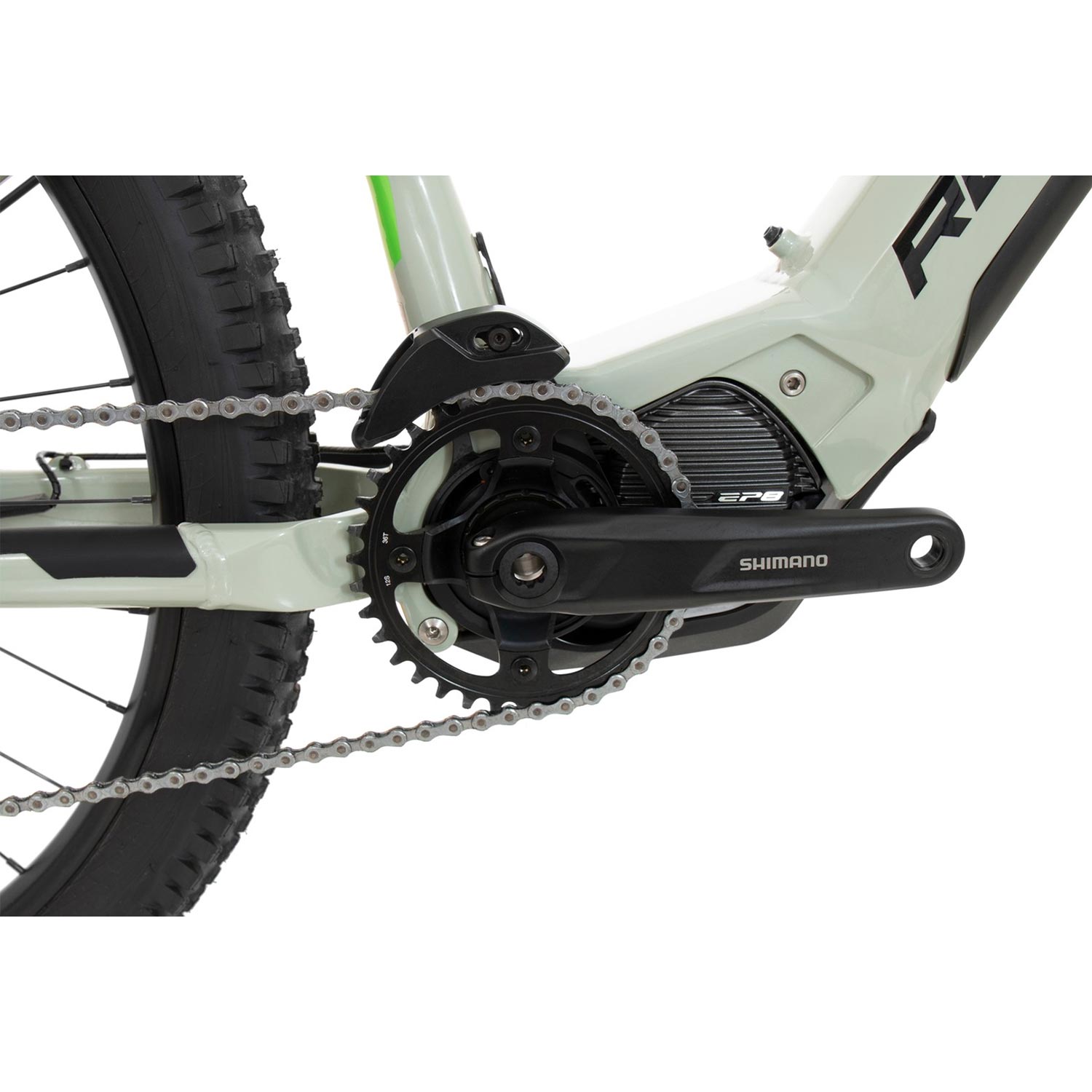

• Motor: SHIMANO STEPS EP600, 36V, 250W, 85Nm, Auto Shift compatible
• Charger: DARFON 4A Smart Plus charger
• Battery: DARFON, 36V, 504 Wh, integrated

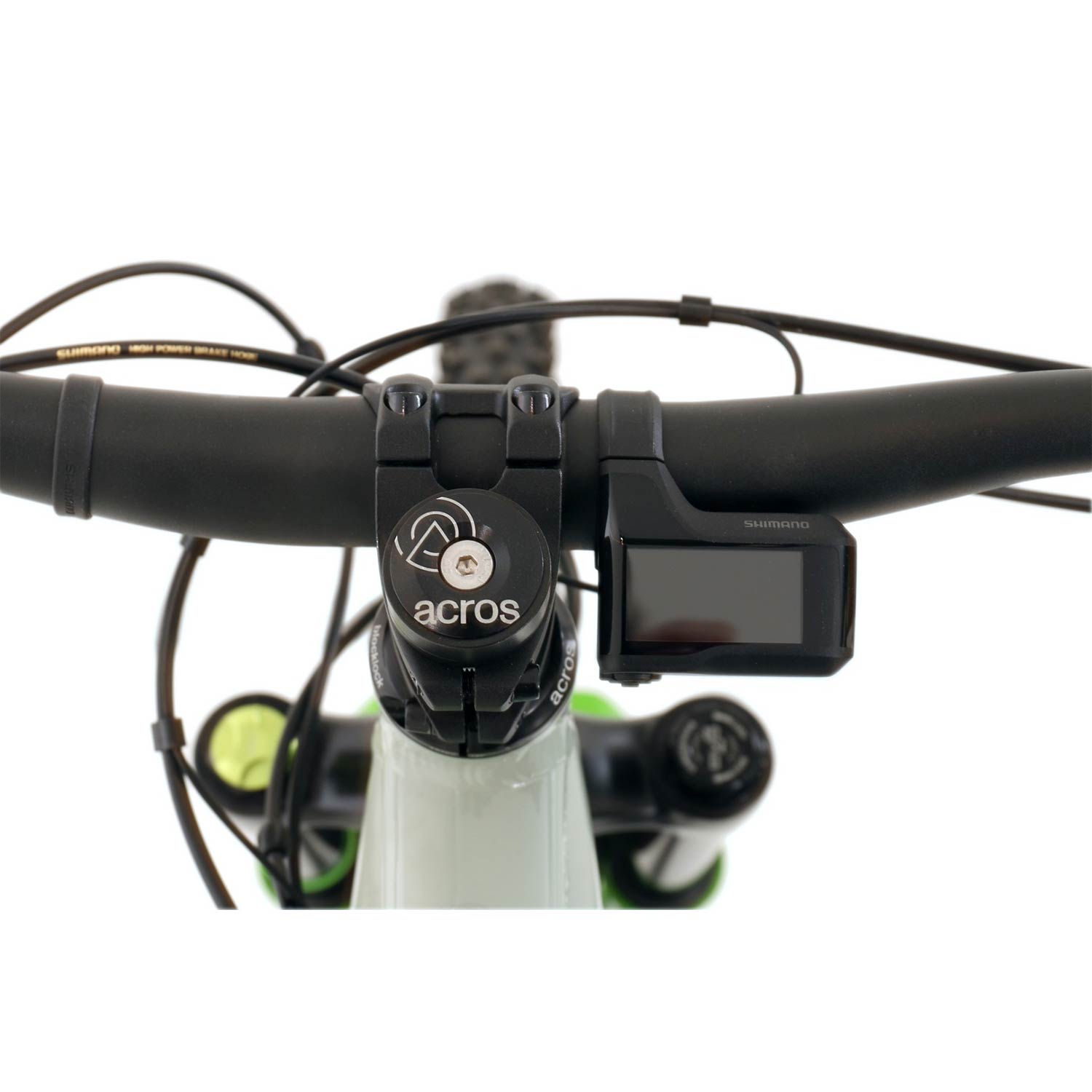

• Display: SHIMANO SC-EM800, Clamp band
• Switch: SHIMANO EM800

Frameset

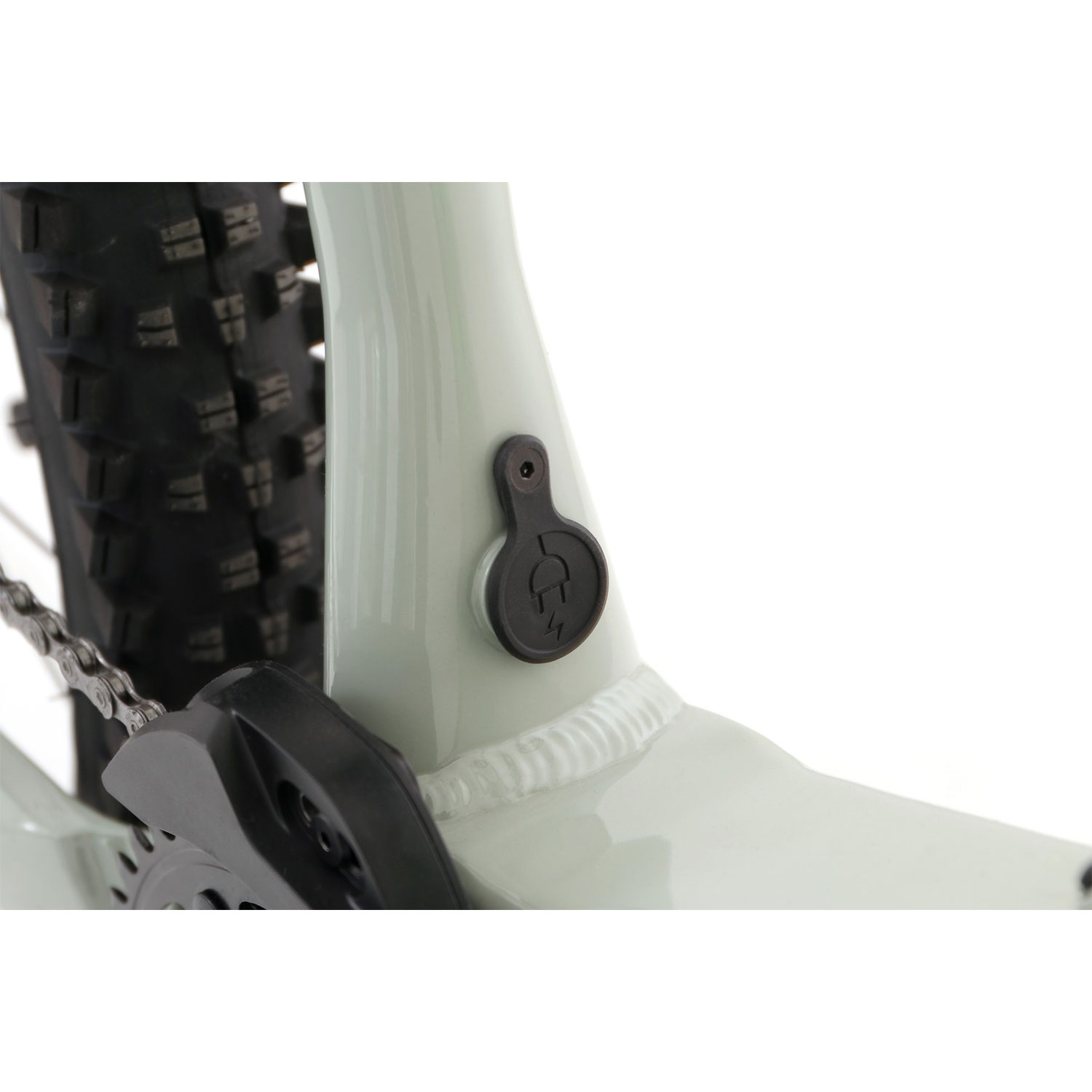

• Alloy Al-6061 T6 Custom tubing, Smooth Welding, Trail Ultimate Geometry, Shark Spine EVO 29er&27.5+, SHIMANO STEPS DU hanger, 2nd Gen. Battery Integration, BOOST 148x12, Post Mount, Replaceable RD Hanger, Inner Cable Routing, Adjust. seatpost ready

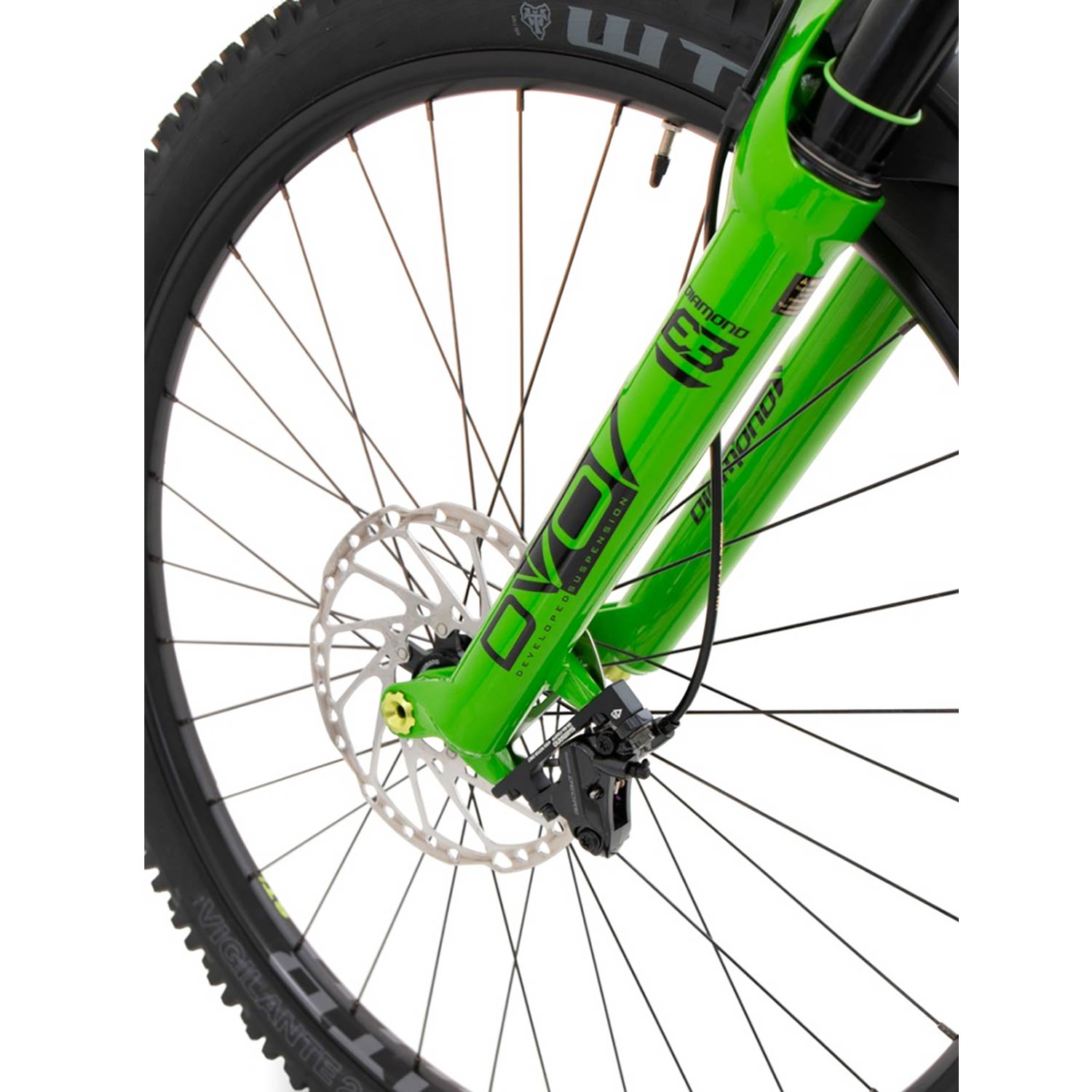

• Suspension Fork: DVO DIAMOND E3, Tapered, Air, 15x110mm axle, 140mm travel
• Headset: ACROS ZS44/EC49
• Suspension Travel Front: 140mm

Drivetrain

• Gear Range: 1x11, 11-51

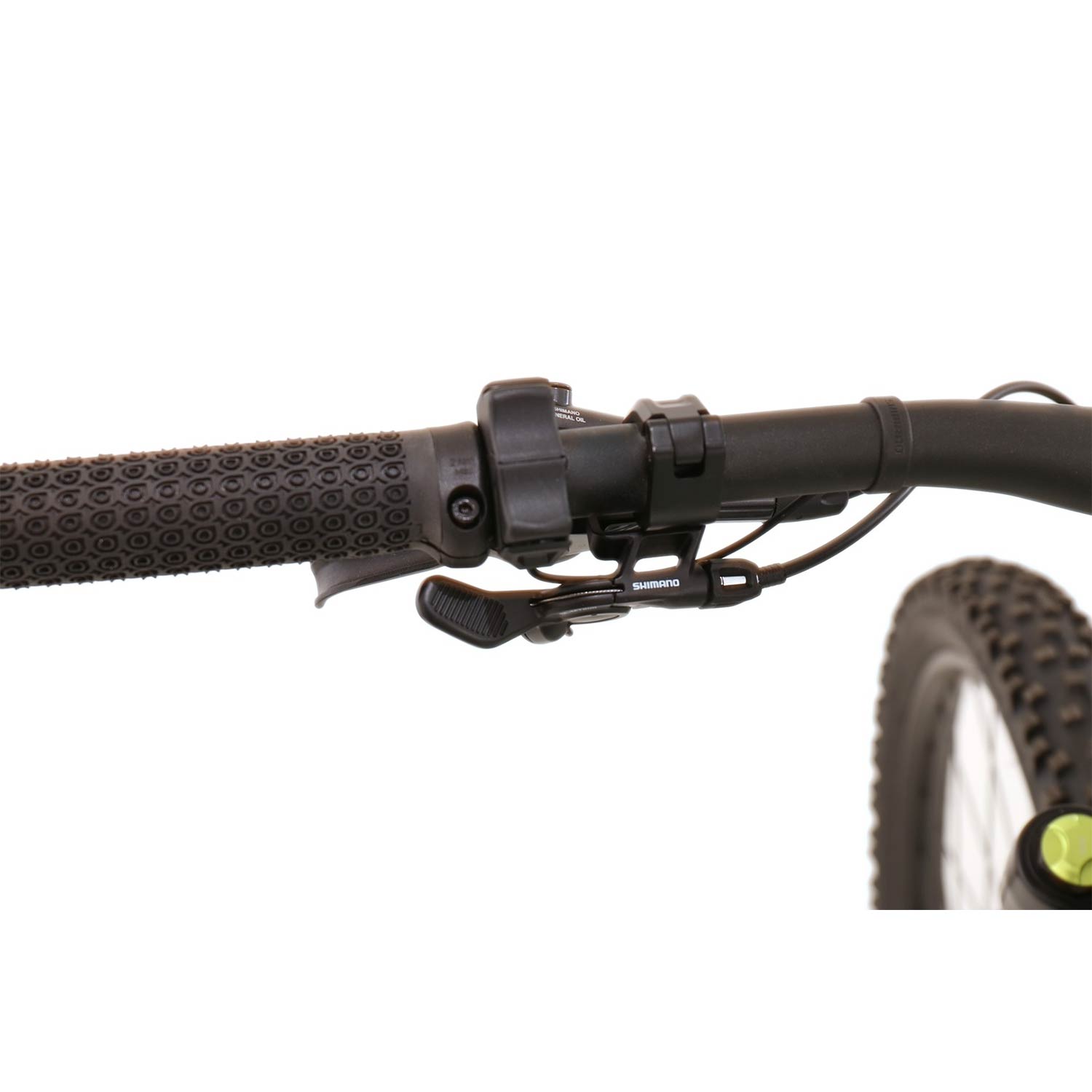

• Shifters: SHIMANO DEORE SL-M5100-IR RapidFire Plus, 11-speed
• Rear Derailleur: SHIMANO DEORE RD-M5100 Shadow Plus
• Crankset: HIMANO EM600, 165MM
• Chainring: 36T
• Cassette: SHIMANO CS-M5100-11, 11-51T
• Chain: KMC e11T

Braking system

• Brakes: SHIMANO M6120
• Rotors: SHIMANO SM-RT64, 203MM

Wheels

• Front Hub: SHIMANO HB-MT400-B, 32H, CENTER LOCK, 15x110mm THRU Type AXLE
• Rear Hub: SHIMANO FH-MT400-B, 32H, CENTER LOCK, 12x148mm THRU Type AXLE
• Rims: WTB STi 30
• Front tyre: WTB Vigilante TCS Tough/High Grip, 29x2.50
• Rear Tyre: WTB Trail Boss TCS Tough/Fast Rolling, 27.5x2.60
• Spokes: Sapim Leader, Stainless Black with secure lock nipples

Cockpit

• Stem: ONE1 TDS-ALD606 Alloy, 35mm, 0 Degrees
• Handlebar: ONE1 Alloy, 9 degree backsweep, 20mm rise, 760mm, 35mm
• Grips: Velo Lock On

Parts

• Saddle: WTB Volt Sport

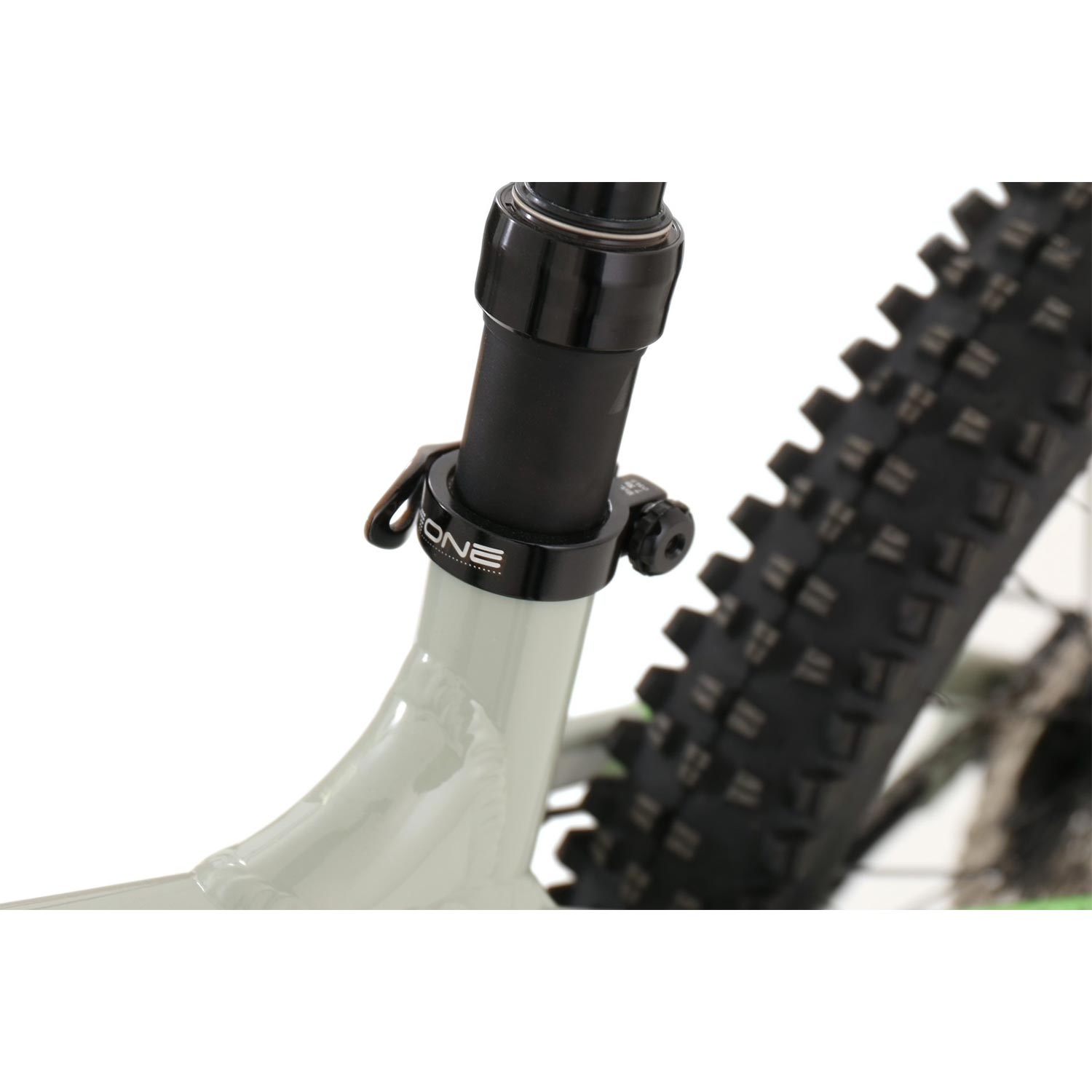

• Seatpost: ONE1 Alloy, MT171, dropper post 170mm, 30.9mm

Please Note: Bike Specification May Be Subject To Change Without Notice
